Absolute angle encoders

Non-contact bearingless miniature encoders for high-precision and robust applications. These encoders are extremely low-cost and easy to use.

AP-A-01

AP-A-01

AP-A-01 MODULAR ASBOLUTE ANGLE ENCODERS

  • Low-cost angle encoder
  • Robust ultra-lightweight design
  • True absolute
  • Resolution: 19 bits
  • Size 39 mm
  • Non-contact and bearingless
  • High operating speed for angle measurements
  • BiSS® C interface
  • Modular solution for perfectly matching in your application
  • Simple installation

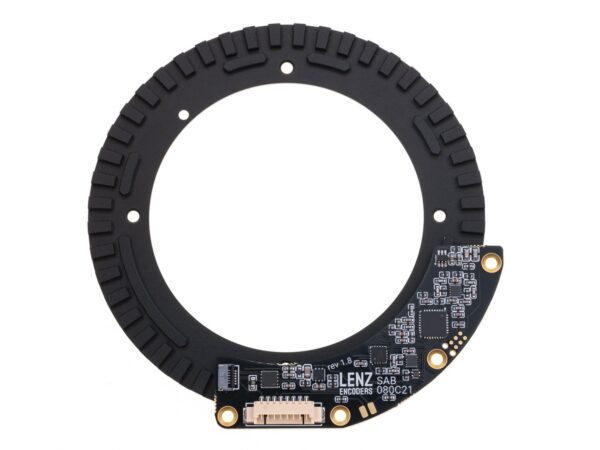

LENZ™  ACTIS series SAB039 is ultra-lightweight absolute angle encoder, consisting of printed circuit board stator and aluminum rotor. These absolute angle encoders are perfect for embedding in your application.

LENZ encoders are inductive position sensors based on the physical principles of electromagnetic induction. Our encoders combine easy installation, low integration cost, high accuracy, stability over time, are extremely robust.

LENZ encoders are insensitive to electromagnetic fields, permanent magnets, power lines, parasitic capacitance, metallic parts and electrical noises.

The design allows multiple stators to be mounted on a single rotor, enabling:

  • System redundancy
  • Improved accuracy through eccentricity calibration

Encoder support additional functions:

  • Setting zero position
  • Setting the direction of rotation
  • Filtering customization
  • Running self-calibration function
  • External isolated temperature sensor

Can be implemented on demand:

  • Energy independent multiturn counter option
  • BiSS® Line interface
  • Interfaces SSI, CAN, Modbus
  • A custom OEM design
